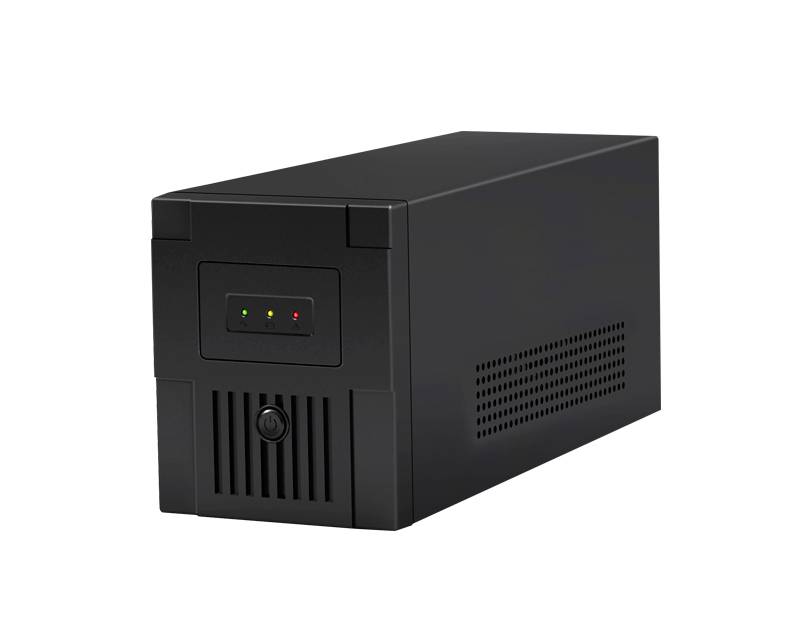

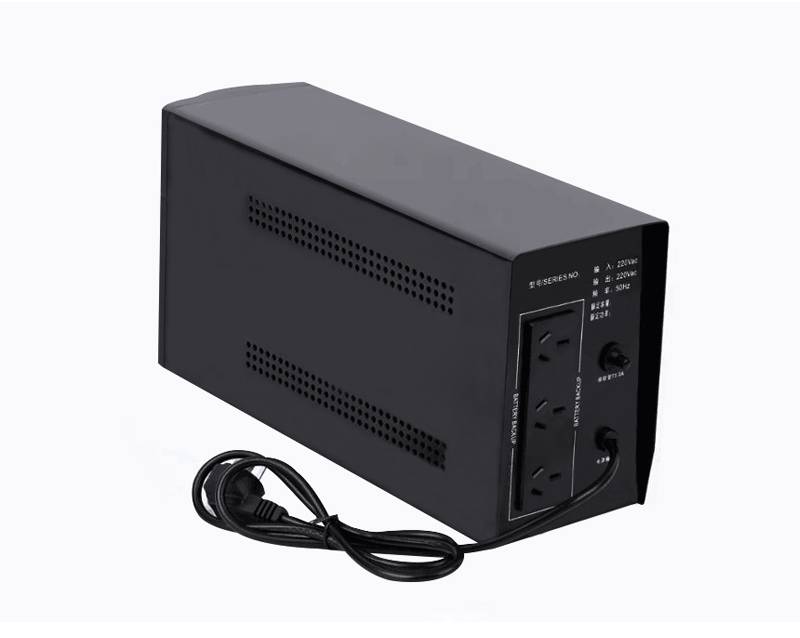

| Item No | MT1500 | ||||
| Capacity | 1500VA/900W | ||||
| Materials | Metal | ||||
| INPUT | |||||
| Voltage | 220/230/240 VAC | ||||
| Voltage Range | 140-300 VAC | ||||
| Frequency Range | 60/50 Hz (Auto sensing) | ||||
| OUTPUT Voltage | 220/230/240 VAC | ||||
| AC Voltage Ragulation (Bat Mode) | ±10% | ||||
| Frequency Range (Bat Mode) | 50Hz ± 1Hz | ||||
| Transfer time | Typical 2-6ms | ||||
| Waveform (Bat Mode) | Simulated Sinewave | ||||
| Power factor | 0.6 | ||||
| Battery | |||||
| Battery Type&Number | 12V 9Ah*2 | ||||
| Floating Charging Voltage | 27.4VDC | ||||
| Charging ability | 4-6 hours recover to 90% capacity | ||||
| Protection | |||||
| Full protection | Overload,discharge,overcharger protection,short-circuit protection | ||||
| Cold start | YES | ||||
| Led Indications | |||||
| Line mode | Green Lighting | ||||
| Battery mode | Red lighting | ||||
| Charging | Yellow lighting | ||||
| Fault | Red lighting | ||||
| Sound Alarm | |||||
| Battery mode | Sounding every 4 seconds | ||||
| Low battery | Sounding every 1 second | ||||
| Fault | keep sounding | ||||
| Dimension,D*W*H(mm) | 370*137*165 | ||||
| Net Weight (kgs) | 11.56 | ||||
| Environment | |||||
| Humidity | 0-90% Relative Humidity 0-40 ℃ (Non-condending) | ||||
| Noisy Level | Less than 40dB | ||||
